SG10RT-20

Adaptive complex power grid extends grid-conncted generation time Todhandik the mobdepone,p bowow the powersatiou immtm at ay time ocoutul the outputp Built-in Taffic Monitoring Equipped with relative monitoring modules for different markets Smart monitoring: Solarman offers not only high-standard quality products andcost effective solar inverters but also smartWIFI device and 24-hours online monitoring platform.

Classification ：

Inverter

key word :

SG10RT-20

juhuinewenergy@gmail.com

E-mail

Pipe Standards

Product message

Product Details

Datasheet

Model Name	SG10RT-20	SG12RT-20	SG15RT-20	SG17RT-20
Input DC
Max. input voltage	1100V
Start-up voltage	180V
Rated input voltage	600V
MPPT voltage range	160-1000V
Max. current for input connector	25A	25A	37.5A	50A
Max. short circuit current	32A	32A	48A	64A
Output DC
Rated out power	10000W	12000W	15000W	17000W
Max.apparent output power	11000VA	13200VA	16500VA	18700VA
Max. AC output current	16.7A	20A	25A	28.3A
Rated grid voltage	3/N/PE,220/400V
AC voltage range	270-480V
Rated grid frequency	50/60Hz
THDi	<3% (of nominal power)
DC current injection	<0.5%(of nominal current)
Power Factor	>99%(0.8 leading-0.8 lagging)
Efficiency
Max. efficiency	98.5%	98.5%	98.6%	98.6%
Max. European efficiency	98.1 %	98.1%	98.1%	98.2%
Protection
PV reverse connection protection	Yes
AC short circuit protection	Yes
Leakage current protection	Yes
Grid monitoring	Yes
PV string current monitoring	Yes
DC switch	Yes
Overvoltage protection	DC TypeII/AC Type II
General Data
Dimensions (WHD)	370480195 mm
Weight	17kg	17kg	17kg	15.5kg
Topology	Transformerless
Self consumption	<1W (night)
Operating ambient temperature range	-25 ~ +60°C
Relative humidity	0-100%
Ingress protection	IP65
Max. operation altitude	4000m
Grid connection standard	VDE-AR-N 4105, VDE V 0124, VDE V 0126-1-1, UTE C15-712-1, NRS 097-1-2, G98, G99, EN 50549-1/-2, UNE 206006, UNE 206007-1, IEC 61727
Safety/EMC standard	IEC 62109-1/-2, IEC 62116, EN 61000-6-1/-2/-3/-4
Communication	WIFI/ Ethernet (optional)

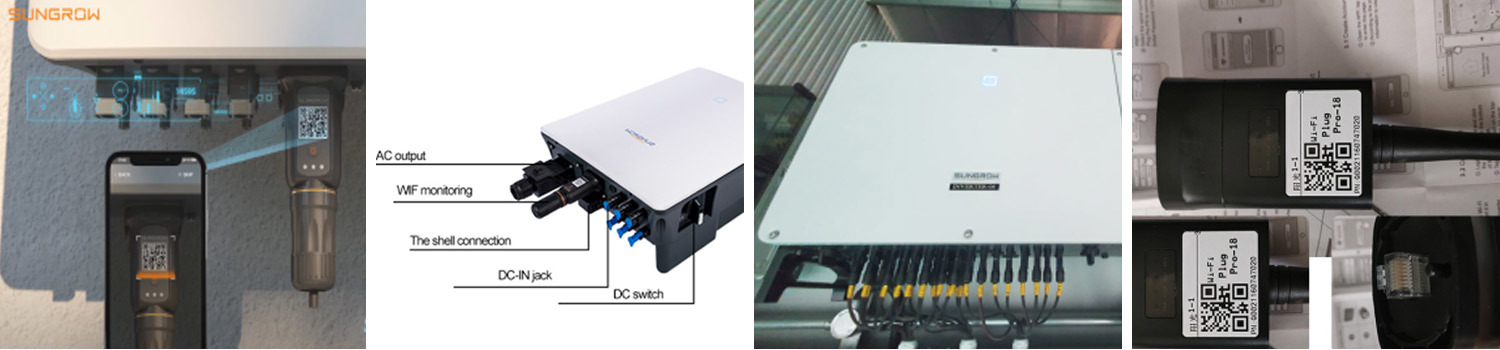

DC connection	MC4 (Max. 6 mm²)
AC connection	Plug and play connector (max. 6 mm² )
Display	LED
Compliance	Active & reactive power control, power ramp rate control

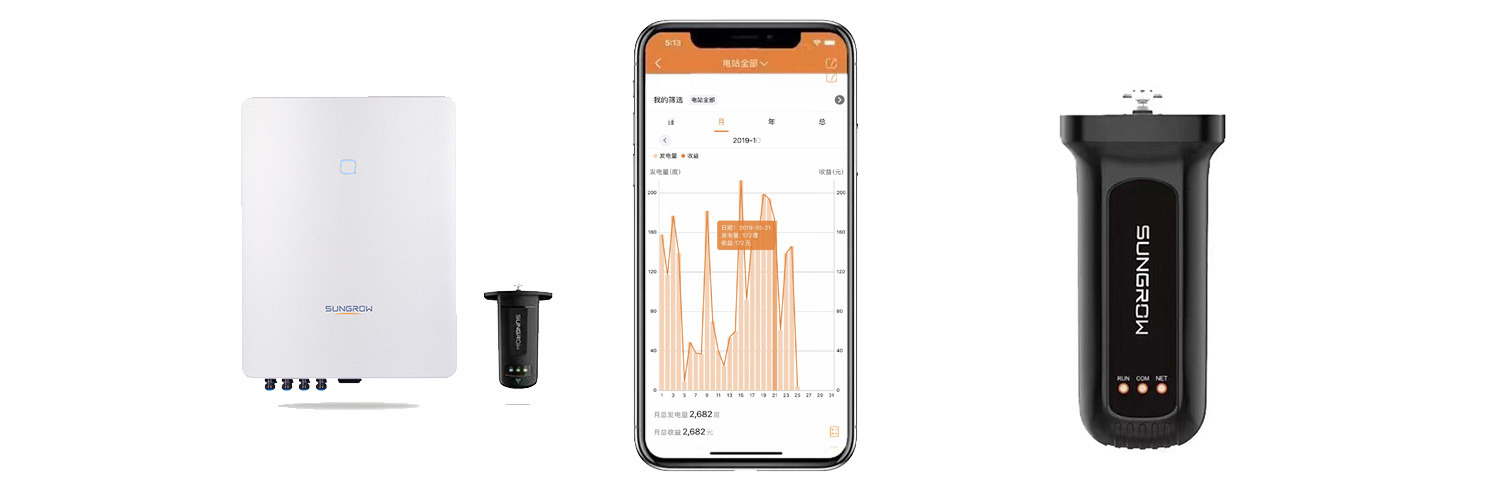

Monitoring Platform

Adaptive complex power grid extends grid-conncted generation time

Todhandik the mobdepone,p bowow the powersatiou immtm at ay time ocoutul the outputp

Built-in Taffic Monitoring

Equipped with relative monitoring modules for different markets

Smart monitoring: Solarman offers not only high-standard quality products andcost effective solar inverters but also smartWIFI device and 24-hours online monitoring platform.
